UR CAP

Collaborative Robot Screwdriving System Joins Universal Robots Ecosystem

Cobot Feed and drive package now comes with pre-load URCap certified capability.

The Visumatic VCM-3X.2 collaborative robot screwdriving system has achieved a UR+ certification for fully integrated use in the Universal Robots family of collaborative robots. The VCM is a complete assembly feed and drive end of arm tooling (EOAT) package for use by machine builders. It includes an automatic screwfeeder, drive system, and end effector for direct mounting to a collaborative robot wrist.

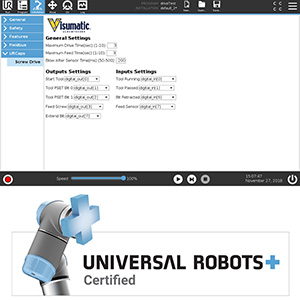

Visumatic’s deep automated fastening process development expertise is fully reflected in the companion URCap plug-in. Builders receive the URCap on a USB drive, which is then loaded into the UR controller. It enables a unified interface, while extending the controller’s capabilities.

The URCap includes all programming required to feed and install fasteners, including fault recovery logic. Fully customizable parameters allow deployment in a broad range of applications. This preset capability delivers enhanced assembly process control and simplifies set up.

Visumatic Industrial Products is a family owned and operated business headquartered in Lexington, Kentucky. They are experts in feeding and driving technology, specializing in automated fastening systems for factories that do product assembly work. All machinery is designed, built, and tested in-house, and offered through a distributor network in the USA, Canada, Mexico, the UK, and the EU.

For further information, contact Visumatic at 859-255-7907, or visit our web site: www.visumatic.com

VCM-3X.2 Product Web Page | https://www.visumatic.com/automatic-screwdriving-systems/robotic/cobot-screwdrivers/vcm-collaborative-package/

VCM-3X.2 Video | https://www.youtube.com/watch?v=hRXgmRZjHtE
